Clearview Solution 500 & 500SB

• 8kW heat output.
• Weight – 165 kgs
• Flue Outlet – 150mm (6”)
• One large Clearview double-glazed door that gives an impressive view of the flames.
• Clearview hot air-wash system for really clean burning without fuss or pampering.
• Independent up draft and down draft air distribution system for maximum response and control.
• Refractory lining and tertiary air supply, promoting super clean combustion.
• Multi-fuel grate, for easy lighting and rapid response.
• Heavy steel construction – welded inside and out for durability and long life.
• Convection casing ensures a lower surface temperature, allowing closer installation to vulnerable surfaces.
• Solid brass knobs and door handles.
• All “wear and tear” stove parts are easily replaceable.
• Stainless steel ash pan for long life and easy ash removal.
• Rotary grate for easy riddling.
• Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
• Base plate to provide additional floor protection.
• Hotplate surface for coffee pot or kettle.
• Built in fuel store for logs and morning kindling.
• Takes up to 15 inch logs.
• 3 years Manufacturers Guarantee.

• Available in a range of 7 colours to compliment your decor.
• External air system for a direct connection to an outside air supply.
• Satin chrome door handles and fittings.
• Optional top or rear flue outlet.
• Smoke Control Kit (can not be retro fitted)
• Double rear heat shield for further reducing clearance to combustibles.

Boiler Options:

• None.

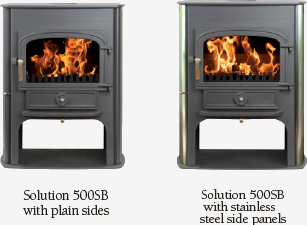

The Solution 500SB has all of the same features as the Solution 500, plus the extra benefit of a combined boiler that is located above the firebox and is heated by the flue-gases.  This results in the glass remaining cleaner than conventional boiler stoves.

• 6kW heat output to room, plus 10,000 Btu (3kW) to boiler.
• Weight – 172 kgs
• Rear Flue Outlet – 150mm (6”)

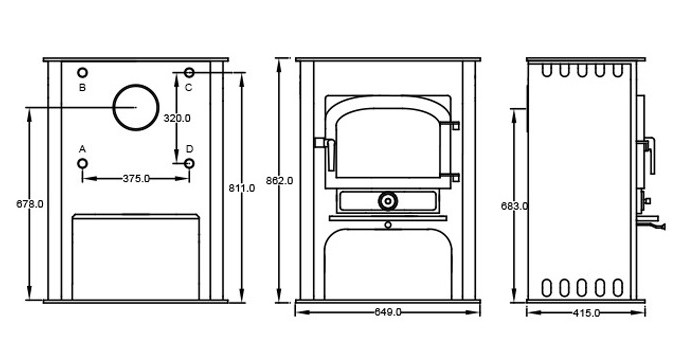

• The boiler has four 28mm connections.

Boiler Options:

• 10,000 Btu, Connections A, B, C & D.
